BH15M61B45

i LEAD TIME: 5 working days
$133.20

Product Model Information

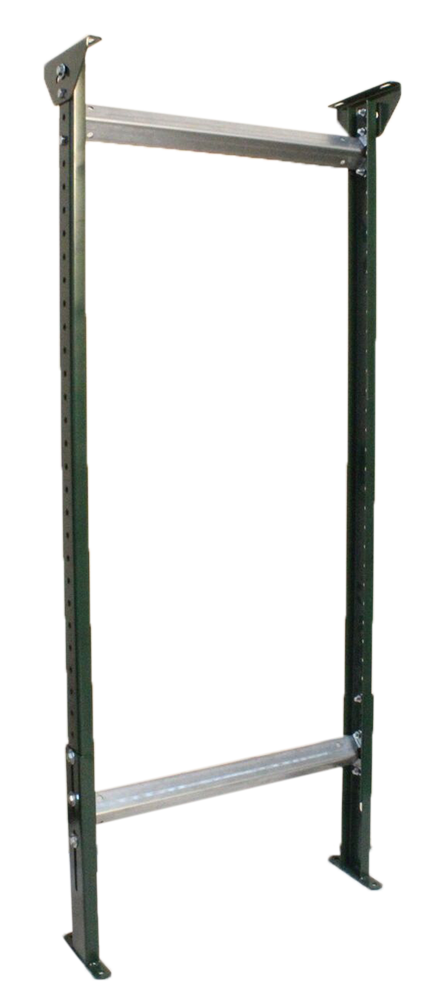

The BH15 model support is a 1,500 pound capacity Hstand which may be used with Ashland Conveyor 2-1/2" and 3-1/2" channel frames, not for use with 4" frames. The Hstand is floor mounted for permanent installations as opposed to tripods which are portable. Upper and lower legs are constructed of 12 ga steel. Single legs are available for applications such as curves. Assembly required..

Refer to the Support Selection Guide for help.

BH15M61B45 Construction

  • Between Frame (in): 45
  • Height Range (in): 55 to 67
  • No of Crossbraces: 2
  • Capacity (lbs): 1500
  • Weight (lbs): 20.9

BH15 Configurations

  • Between Frame(in): 7 to 51
  • Height Range (in): 11-1/2 to 109
  • Swivel Casters: no
