BTIB1606

i LEAD TIME: 3 working days
$42.75

Product Model Information

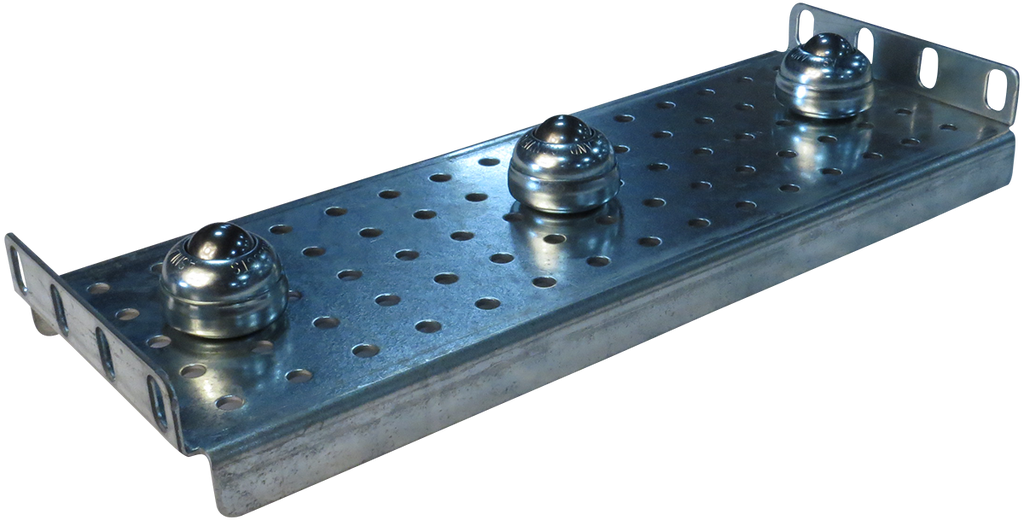

The Model BTI is a modular ball tranfser insert assembly constructed of 12 ga. galvanized. Standard ball transfers are zinc plated carbon steel with a 75 lb. capacity per ball unit." The inserts are designed to install in 7F, 8F, 9F, 10F, and 11F frames of a corresponding BF, allowing for rollers be removed and inserts installed".

Refer to the Ball Transfer Insert Selection Guide for help.

BTIB1606 Construction

  • Between Frame (in): 16
  • Width (in): 5-7/8
  • Ball Rows: 1
  • Ball Centers (in): 6
  • Insert Capacity (lbs): 225
  • Weight (lbs): 5

BTI Configurations

  • Between Frame(in): 10,13,16,22,27,36
  • Centers(in): 2,3,4,6
