Product Model Information

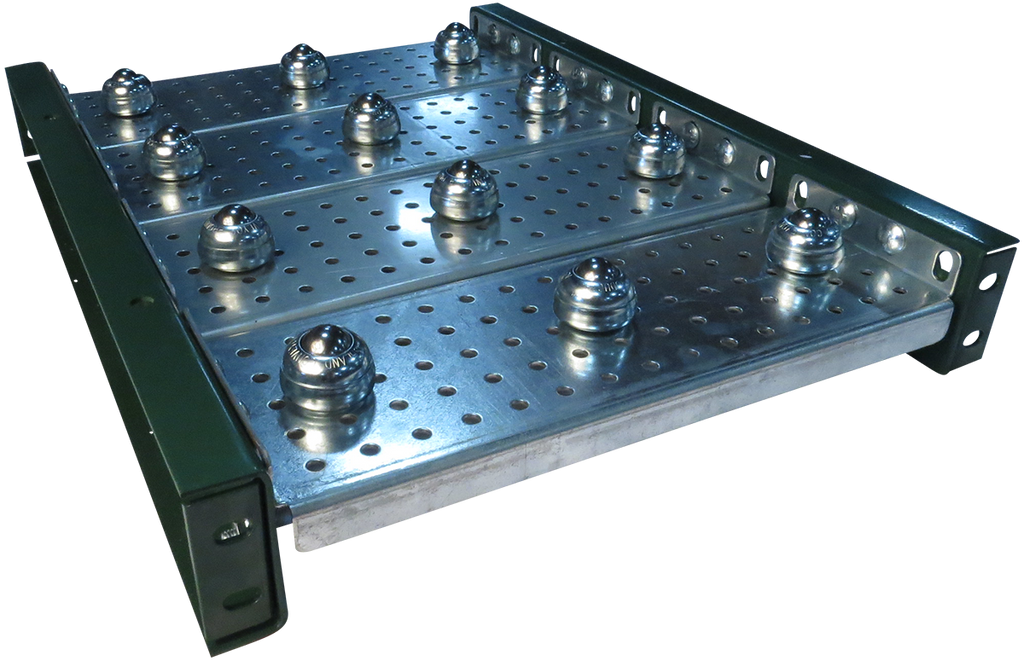

The Model BTIT is a modular ball tranfser table assembly constructed of 3-1/2" 11 ga. painted steel channel frames and 12 ga. galvanized steel inserts. Standard ball transfers are zinc plated carbon steel with a 75 lb. capacity per ball unit. Each table includes butt plate couplers.
Refer to the Ball Transfer Table Selection Guide for help.
- Length (ft): 10
- Between Frame (in): 16
- Ball Centers (in): 6
- Table Capacity (lbs/ft): 120 on 10' support centers, 600 on 5' centers
- Weight (lbs): 156
- Length(ft): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
- Between Frame(in): 10,13,16,22,27,36
- Centers(in): 2, 3, 4, 6
