Product Model Information

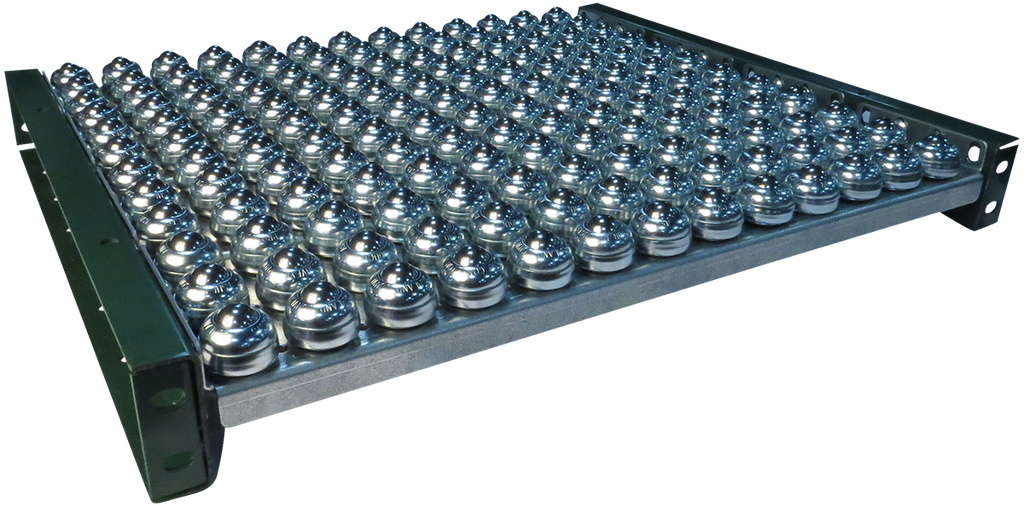

The Model BTIT is a modular ball tranfser table assembly constructed of 3-1/2" 11 ga. painted steel channel frames and 12 ga. galvanized steel inserts. Standard ball transfers are zinc plated carbon steel with a 75 lb. capacity per ball unit. Each table includes butt plate couplers.
Refer to the Ball Transfer Table Selection Guide for help.
- Length (ft): 10
- Between Frame (in): 27
- Ball Centers (in): 2
- Table Capacity (lbs/ft): 120 on 10' support centers, 350 on 5' centers
- Weight (lbs): 492
- Length(ft): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
- Between Frame(in): 10,13,16,22,27,36
- Centers(in): 2, 3, 4, 6
When Can This Item Ship?
Lead times are subject to change depending on the size of your order. If we cannot meet the lead time that is listed on the website, we will contact you to discuss your order and your options.
All items in your order will ship together. The lead time for your order is determined by the items in your order with the longest lead time.
For more information about our lead times, please visit out FAQ page.
