BTIT8-0B1303BP

i LEAD TIME: 5 working days
$1,111.20

Product Model Information

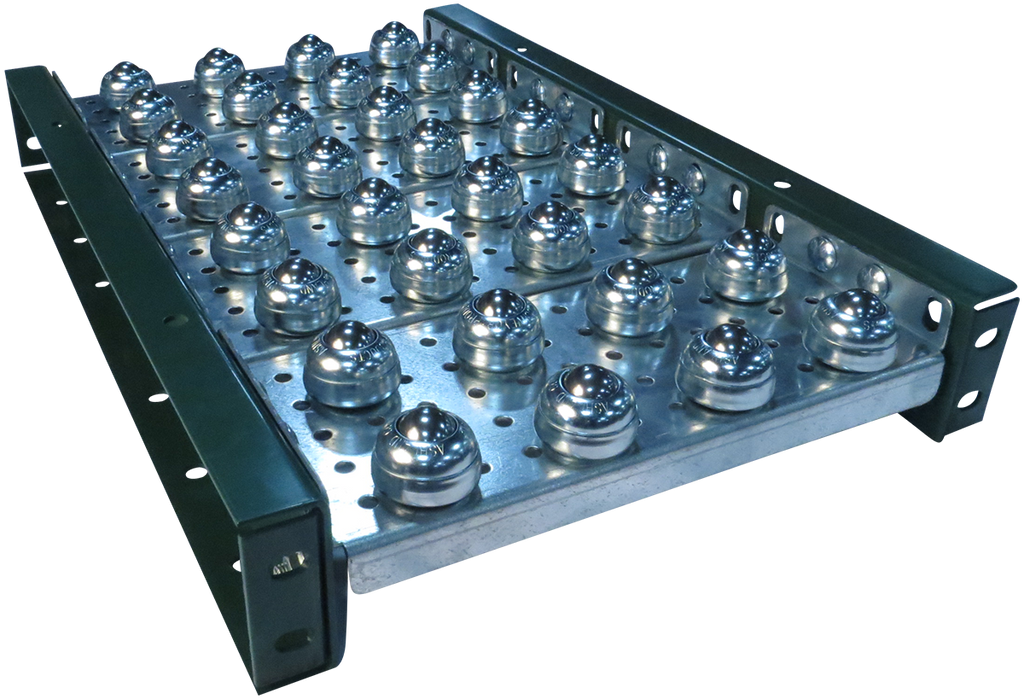

The Model BTIT is a modular ball tranfser table assembly constructed of 3-1/2" 11 ga. painted steel channel frames and 12 ga. galvanized steel inserts. Standard ball transfers are zinc plated carbon steel with a 75 lb. capacity per ball unit. Each table includes butt plate couplers.

Refer to the Ball Transfer Table Selection Guide for help.

BTIT8-0B1303BP Construction

  • Length (ft): 8
  • Between Frame (in): 13
  • Ball Centers (in): 3
  • Table Capacity (lbs/ft): 120 on 10' support centers, 600 on 5' centers
  • Weight (lbs): 146

BTIT Configurations

  • Length(ft): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
  • Between Frame(in): 10,13,16,22,27,36
  • Centers(in): 2, 3, 4, 6
