H50M33B28
Product Model Information

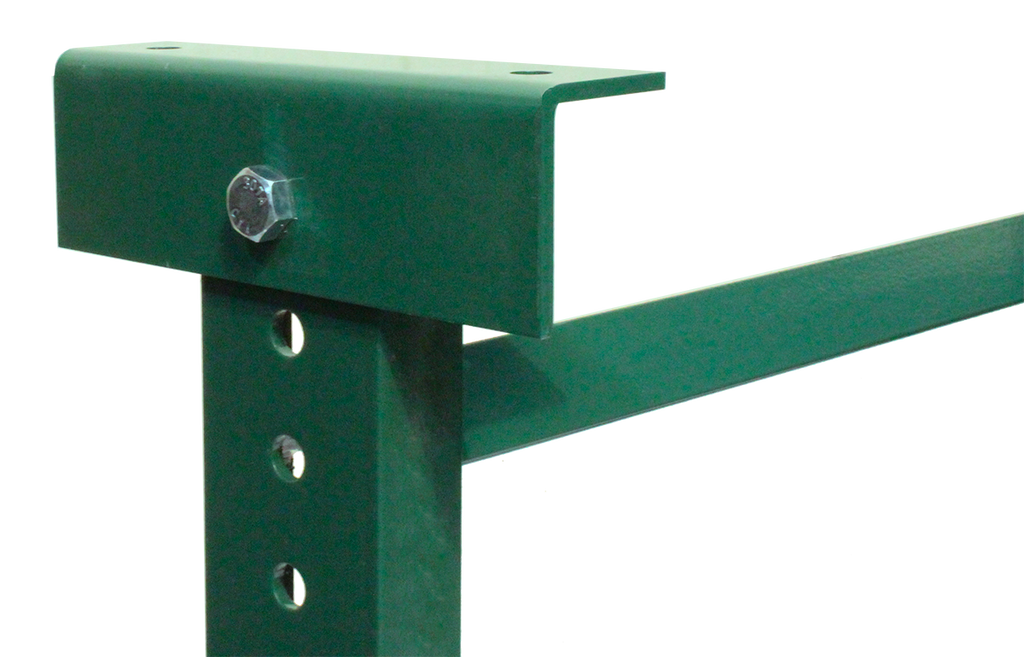

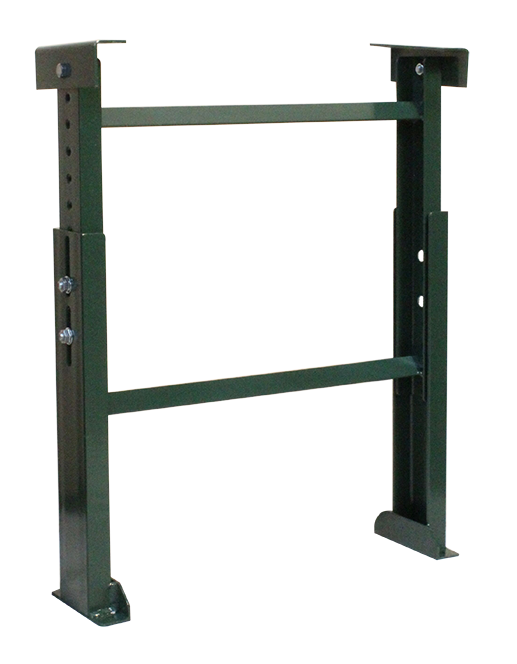

The H50 model support is a 5,000 pound capacity Hstand which may be used with Ashland Conveyor 4" channel frames, not for use with 2-1/2" and 3-1/2" frames. The Hstand is floor mounted for permanent installations as opposed to tripods which are portable. Upper and lower legs are constructed of stuctural steel. Single legs are available for applications such as curves. Assembly required..
Refer to the Support Selection Guide for help.
H50M33B28 Construction
- Between Frame (in): 28
- Height Range (in): 25 to 41-1/2
- No of Crossbraces: 2
- Capacity (lbs): 5000
- Weight (lbs): 52.5
H50 Configurations
- Between Frame(in): 7 to 51 & 55
- Height Range (in): 4-1/4 to 64
- Swivel Casters: no
