SB35012BRT22RE3/4A1PE60

i LEAD TIME: 20 working days
$5,337.80

Product Model Information

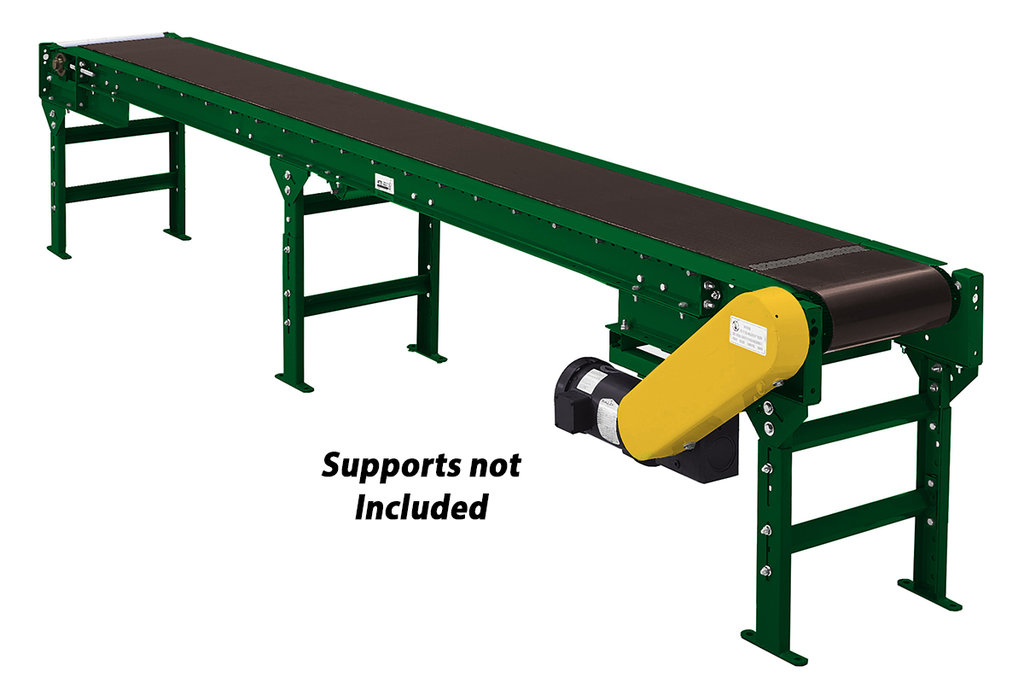

The Model SB350 power belt conveyor is constructed of a 12 ga steel bed mounted within 3-1/2" 11 ga channels, 4" end pulleys, and 1.9"diameter return rollers.

Refer to the Power Belt Conveyor Selection Guide for help.

SB35012BRT22RE3/4A1PE60 Construction

  • Type: Slider Bed Channel Frame
  • Overall Length (ft): 22
  • Drive: End Drive Right Hand
  • Belt: Rough Top Black SBR
  • Belt Width (in): 12
  • Motor: 3/4 HP 120/240 VAC 1ɸ
  • Speed (FPM): 60
  • Load Capacity 10' Support Centers at no Incline(lbs/ft): 23
  • Load Capacity 5' Support Centers at no Incline(lbs/ft): 23
  • Load Capacity 10' Support Centers at 15 Deg Incline(lbs/ft): 13
  • Load Capacity 5' Support Centers at 15 Deg Incline(lbs/ft): 13
  • Load Capacity 10' Support Centers at 25 Deg Incline(lbs/ft): 10
  • Load Capacity 5' Support Centers at 25 Deg Incline(lbs/ft): 10
  • Weight (lbs): 546

SB350 Configurations

  • Overall Length (ft): 7, 12, 17, 22, 32, 42, 52
  • Drive: End Drive Right Hand, Center Drive Right Hand
  • Belt Width: 6, 12, 18, 24, 30, 36
  • Belt: General Purpose Smooth Black PVC, Rough Top Black SBR, FDA/USDA Food Grade White Buna-N
  • Motor: , , , , ,
  • Speed (ft/min): 30, 40, 60, 90
