SB40012BFG6RE1/2A1PE30

i LEAD TIME: 10 working days
$3,074.60

Product Model Information

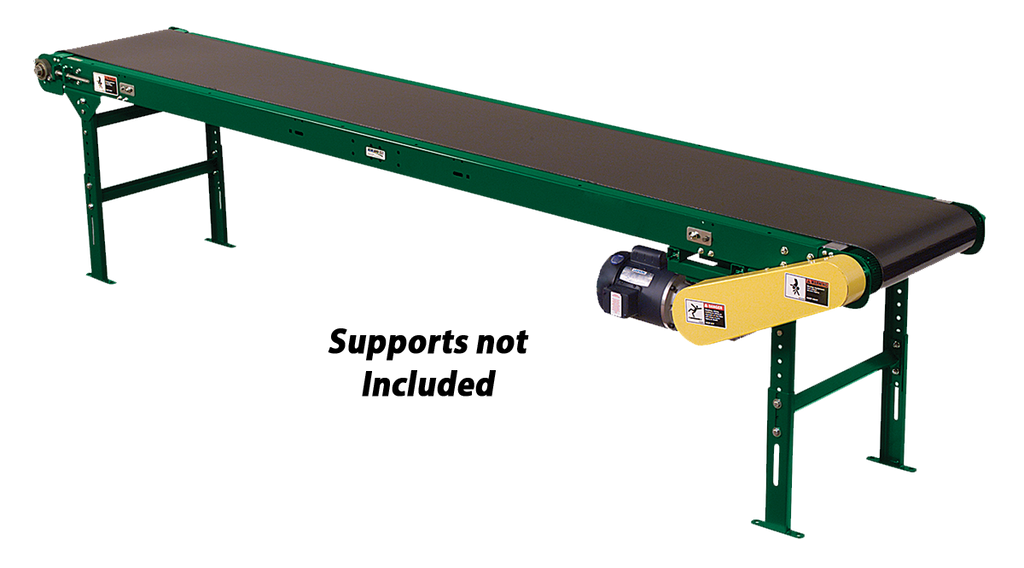

The Model SB400 power belt conveyor is constructed of a 12 ga 4" formed steel box bed, 4" end pulleys, and 1.9"diameter return rollers.

Refer to the Power Belt Conveyor Selection Guide for help.

SB40012BFG6RE1/2A1PE30 Construction

  • Type: Slider Bed Box Frame
  • Overall Length (ft): 6
  • Drive: End Drive Right Hand
  • Belt: FDA/USDA Food Grade White Buna-N
  • Belt Width (in): 12
  • Motor: 1/2 HP 120/240 VAC 1ɸ
  • Speed (FPM): 30
  • Load Capacity 10' Support Centers at no Incline(lbs/ft): 116
  • Load Capacity 5' Support Centers at no Incline(lbs/ft): 116
  • Load Capacity 10' Support Centers at 15 Deg Incline(lbs/ft): 68
  • Load Capacity 5' Support Centers at 15 Deg Incline(lbs/ft): 68
  • Load Capacity 10' Support Centers at 25 Deg Incline(lbs/ft): 54
  • Load Capacity 5' Support Centers at 25 Deg Incline(lbs/ft): 54
  • Weight (lbs): 286

SB400 Configurations

  • Overall Length (ft): 6, 11, 16, 21, 31, 41, 51
  • Drive: End Drive Right Hand, Center Drive Right Hand
  • Belt Width: 6, 12, 18, 24, 30, 36
  • Belt: General Purpose Smooth Black PVC, Rough Top Black SBR, FDA/USDA Food Grade White Buna-N
  • Motor: , , , , ,
  • Speed (ft/min): 30, 40, 60, 90
