Product Model Information

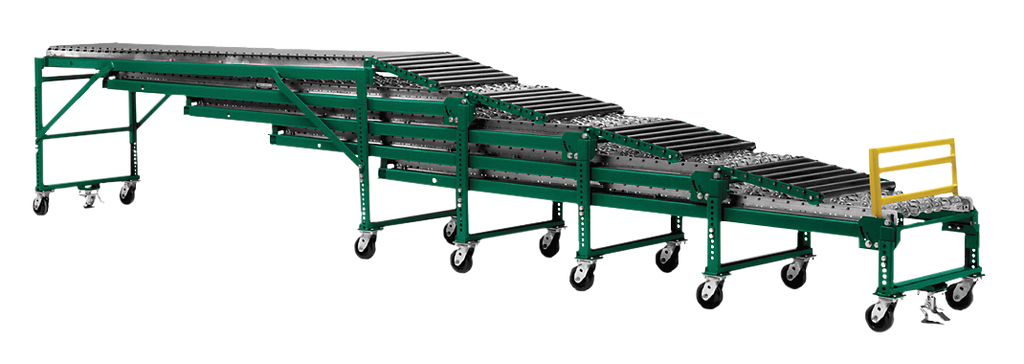

The Model Telescoping Conveyor is constructed of 7 ga. steel frames for each telescoping section and all formed parts are made of 10 ga. steel. Each conveyor bed frame is made of 2-1/2" 12 ga. galvanized steel. Each unit has a foot activated floor stop on both the entrance and exit ends. All telescopes with 5 sections or less have 5" diameter casters and the 6 section has 8" casters..
Refer to the Telescope Conveyor Selection Guide for help.
- Type: Roller
- Extended Length (ft): 50
- Retracted Length: 14'-8"
- Overall Width (in): 18
- No of Sections: 5
- Slope Range (in/10 ft): 1-3
- Elevations: Elevations Vary, Please Call
- Roller/Axle Centers (in): 15
- Frame Capacity (lbs/ft): 140
- Weight (lbs): 1740
- Conveyor Beds: Skatewheel, Roller
- No of Sections: 2, 3, 4, 5, 6
