TAP16X25X14GAGB16
i LEAD TIME: 5 working days
$106.20
Product Model Information

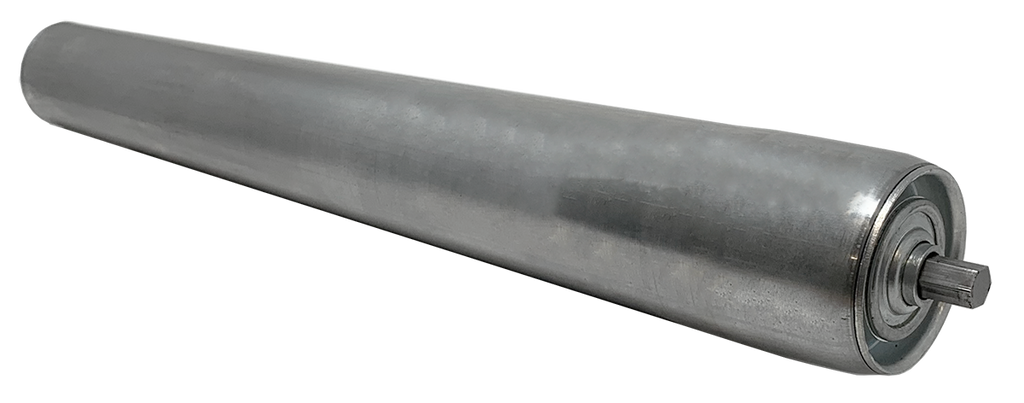

The Model TAP16X25X14GAG roller is a tapered, spring retained conveyor roller constructed of a 2.5" diameter 14 gauge galvanized steel tube with a 7/16" hex plain steel shaft.
TAP16X25X14GAGB16 Construction
- Between Frame (in): 16"
- Roller Tube: 2.5"x14ga Galv Stl
- Small Dia: 1.67"
- Large Dia: 2.50"
- Rate of Taper: .060" per inch
- Grooves: none
- Shaft: 7/16" Hex Plain Stl
- Bearing: Commercial Light oil
- Roller Retention: Spring (large end)
- Capacity (lbs): 250
- Weight (lbs): 4
TAP16X25X14GAG Configurations
- Commercial Light Oil Bearings
- Precision Abec Bearings
- Grooves
