TAP16X25X14GAGB27

i LEAD TIME: 5 working days
$121.75

Product Model Information

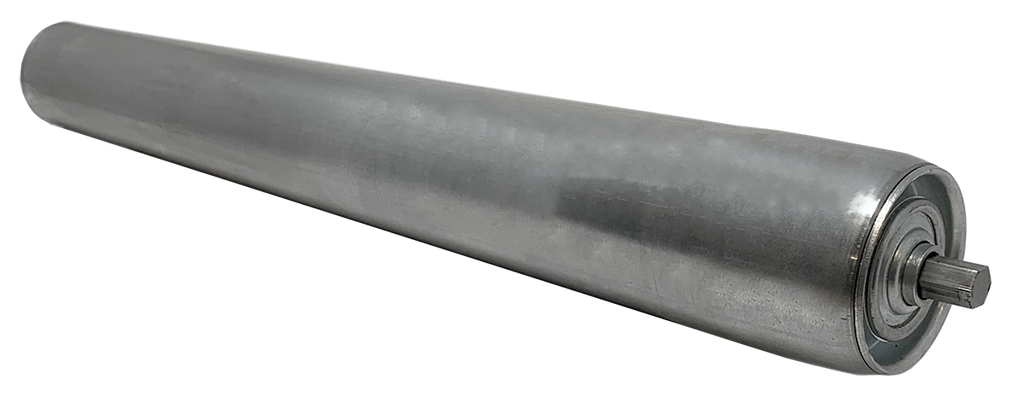

The Model TAP16X25X14GAG roller is a tapered, spring retained conveyor roller constructed of a 2.5" diameter 14 gauge galvanized steel tube with a 7/16" hex plain steel shaft.

TAP16X25X14GAGB27 Construction

  • Between Frame (in): 27"
  • Roller Tube: 2.5"x14ga Galv Stl
  • Small Dia: 1.68"
  • Large Dia: 2.50"
  • Rate of Taper: .042" per inch
  • Grooves: none
  • Shaft: 7/16" Hex Plain Stl
  • Bearing: Commercial Light oil
  • Roller Retention: Spring (large end)
  • Capacity (lbs): 250
  • Weight (lbs): 4

TAP16X25X14GAG Configurations

  • Commercial Light Oil Bearings
  • Precision Abec Bearings
  • Grooves
