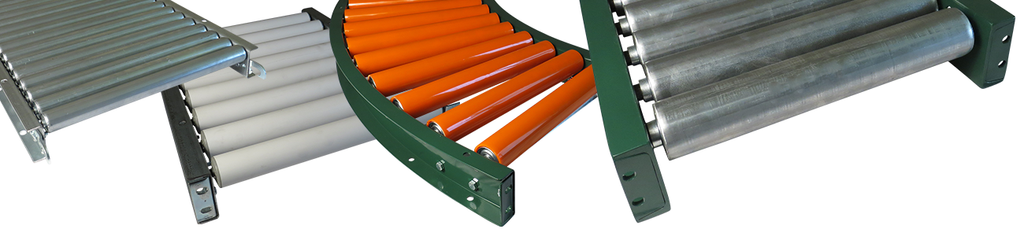

Model 10F_ _K Roller Conveyor Product Information

The Model 10F_ _K roller conveyor is constructed of 3-1/2" Painted Steel side channels. This model of conveyor rollers are compact but will convey light, medium, and heavy loads. These conveyor systems are one of the most popular handling systems on the market.

10F__K Roller Conveyor Construction:

Tube: 1.9" O.D. x 16 ga. plain steel

Axle: 7/16" hex plain steel

Axle retention: Spring

Roller Bearing: Commercial Light Oil

Frame: 10F: 3-1/2" x 1-3/8" x 11 ga. painted steel channel

Coupling: Butt plate

Roller Capacity (lbs): 245 to 270 (dependent upon BF)

Frame Capacity (lbs/ft): 120 on 10' support centers, 600 on 5' centers

10F__K Roller Conveyor Configuration:

Roller Centers (in): 3, 4.5, 6

Between Frame (in): 7 to 51

Straights (ft): 5, 10

Curves (deg): 45, 90

Sleeve: none

Model 10F_ _K Roller Conveyor Product Information
FILTERS
1732 results
Wheel Flow Rail 10FR4G10015

10FR4G10015

Roller Conveyor 10F10KG03B22BP

10F10KG03B22BP

Roller Conveyor 10F05KG03B36BP

10F05KG03B36BP

Roller Conveyor 10F05KG03B22BP

10F05KG03B22BP

Roller Conveyor 10F10KG03B36BP

10F10KG03B36BP

Wheel Flow Rail 10FR4G6515

10FR4G6515

Roller Conveyor 10F10KG45B27BP

10F10KG45B27BP

Roller Conveyor 10F10KG03B21BP

10F10KG03B21BP

Roller Conveyor 10F05KG03B27BP

10F05KG03B27BP

Flanged Roller Flow Rail 10FRMFP3003R

10FRMFP3003R

Wheel Flow Rail 10FR1G6503

10FR1G6503

Roller Conveyor 10F10KG03B33BP

10F10KG03B33BP

Roller Conveyor 10F10KG03B27BP

10F10KG03B27BP

Roller Conveyor 10F10KG03B07BP

10F10KG03B07BP

Roller Conveyor 10F10K03B13BP

10F10K03B13BP

Roller Conveyor 10F05KG45B13BP

10F05KG45B13BP

Wheel Flow Rail 10FRMP2503

10FRMP2503

Flanged Roller Flow Rail 10FRMFP3003L

10FRMFP3003L

Wheel Flow Rail 10FR6G10015

10FR6G10015

Wheel Flow Rail 10FR4P4015

10FR4P4015

Wheel Flow Rail 10FR4G6515PU

10FR4G6515PU

Wheel Flow Rail 10FR4G10003

10FR4G10003

Wheel Flow Rail 10FR2G6503

10FR2G6503

Wheel Flow Rail 10FR2G10003

10FR2G10003

Roller Conveyor 10F90K03B33BP

10F90K03B33BP

Roller Conveyor 10F10KG45B36BP

10F10KG45B36BP

Roller Conveyor 10F10KG03B47BP

10F10KG03B47BP

Roller Conveyor 10F10KG03B13BP

10F10KG03B13BP

Roller Conveyor 10F10K03B51BP

10F10K03B51BP

Roller Conveyor 10F10K03B22BP

10F10K03B22BP

Roller Conveyor 10F10DG03B13BP

10F10DG03B13BP

Roller Conveyor 10F05KG45B36BP

10F05KG45B36BP

Roller Conveyor 10F05KG03B51BP

10F05KG03B51BP

Roller Conveyor 10F05K03B16BP

10F05K03B16BP

Roller Conveyor 10F05K03B13BP

10F05K03B13BP

Conveyor Gate 10F03KG03B22NC

10F03KG03B22NC
